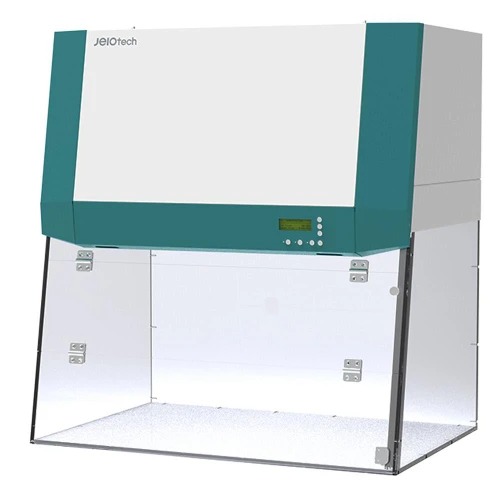

The Lab Companion PW-11 PCR Workstation is specially designed to minimize the sample contamination during PCR applications by combining ISO Class 4 (US Class 10) clean air environment with UV light sterilization capability.
Filtration Features
- ISO Class 4 (US Class 10) HEPA filter for optimal protection against cross-contamination
- Neoprene gaskets ensuring that the HEPA filter is airtight to the body unit
- Durable HEPA filter (The HEPA filters life span depending on the test room conditions has a life span of 3 years.)
- High-quality polyester fiber pre-filter (with minimal pressure loss and 85% arrestance on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter
- Convenient change of filter cartridges by opening the upper front cover
- Adjustable digital blower speed switch located in the front with use of large capacity blower is adopted into the equipment
Safety Features
- Built-in safety interlock switch which shuts off the UV light automatically when the door is opened
- UV-blocking door and side panels made of transparent acrylic resin providing clear inside view
- Audible alarm for protecting the samples against UV over-exposure
- Protection against overcurrent
Constructional Features
- Effective sterilization using a long-life 254 nm UV lamp (average life spen : 8,000 hour lifespan)
- Anti-glare fluorescent lamp installed on the center ceiling of the workspace area minimizing shadows and relieving eye strain
- Programmable digital UV light timer with Delayed OFF function (maximum 30 min)
- User-friendly microprocessor-based control panel with an LCD and responsive touch buttons
- Easy blower speed adjustment by the control panel
Specifications
- Air Flow Type: Vertical
- Max. air volume (cmh / cfm): 697 / 408
- Min. air volume (cmh / cfm): 209 / 121
- Laminar Airflow Velocity (m / s / fpm): 0.3 / 60
- Filters
- Air Cleanliness: ISO 14644-1Class 4
- HEPA Filter: Typical efficiency of 99.99% on 0.3μm (US MIL- STD -282); Micro glass fiber Media, Particle board, Aluminum separator, Neoprene gaskets
- Pre Filter: Typical efficiency of 99.99% at 0.3μm US MIL -STD -282 ; Micro glass fiber media, Particle board, AL separator, Neoprene gaskets
- Noise Level: Typically < 60 dBA at initial Blower speed
- Materials
- Work Surface: 10mm tick acrylic resin (Clear type)
- Windows (Front / Side / Back)): 8mm / 10mm tick acrylic resin (Clear type)
- Illumination
- Intensity
- FL lamp (lux): >1000
- UV Density: 185
- Capacity
- FL Lamp: 20W×1EA
- UV Lamp: 20W×1EA
- Dimension (W×D×H)
- Internal (mm / inch): 880×585×602 / 34.6×23×23.7
- Exterior (mm / inch): 900×605×964 / 35.4×24×38
- Weight (Body) (kg / lbs): 64.2 / 141.5
- Electrical Requirements: 120V / 60Hz / 2.7A
