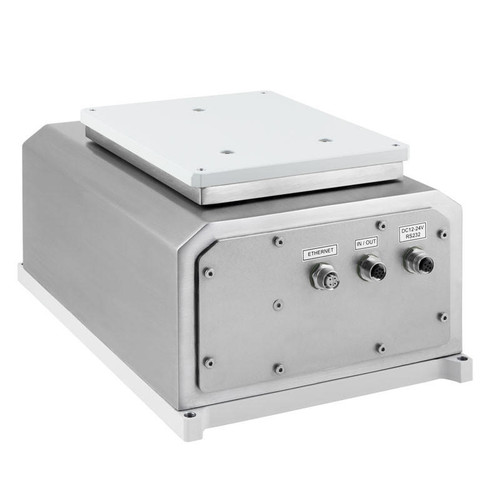

Radwag WX-016-0108, MWLH 10 Electromagnetic Compensation Weighing Module 10kg

Readability:
0.01g
SKU:
V029.WX-016-0108
Condition:
New

Price $5,485.60
Estimated delivery in 4-6 weeks after ordering
* Estimate is for US customers only.
* Shipping and Import Duties are calculated at checkout.

Frequently Bought Together

Please choose Options for all selected Products

Maximum capacity [Max]: 10kg
Readability [d]: 0.01g

Intended use:
Operation of professional MWLH electromagnetic high resolution modules is based on an electromagnetic digital converter.
The MWLH series is designed to be incorporated into customer's weighing systems requiring high IP rate, great weighing accuracy and high measurement speed.
Brand new, compact design favours unlimited module's adaptation capabilities. The module may be installed on technological lines thus ensuring quick and precise measurement in challenging industrial environment.

Design:
MWMH Weighing Module features integrated stainless steel housing with degree of protection classified as IP 65. It is connected to signal cables via quick coupling. The module base features four holes located in its corners allowing to fix the module to the base using M8 screws. MWMH Weighing Module comprises aluminium, painted plate with four threaded M6 holes, useful for fixing the weighing pan.

Features

  • Brand new construction of the electromagnetic mechanism housed in a stainless steel casing (IP65),
  • Reading unit of 0,01 g,
  • Ease of adaptation to required usage area,
  • Cooperation with HY terminal,
  • Interfaces: RS 232, RS 485, Ethernet, 2xIN i 2xOUT, Profibus (option).

Specifications

  • Maximum capacity [Max]: 10 kg
  • Minimum load: 0.5 g
  • Preload range: 1 kg
  • Readability [d]: 0.01 g
  • Tare range: -10 kg
  • Repeatability: 0.01 g
  • Linearity: ±0.02 g
  • Stabilization time: 3 s
  • Adjustment: external
  • Protection class: IP 65
  • Power supply: 100 ÷ 240 V AC 50 / 60 Hz
  • Operating temperature: +10 ÷ +40 °C
  • Atmospheric humidity: 15% ÷ 80%
  • Weighing pan dimensions: 212×174 mm
  • Device dimensions: 341×236×164 mm
