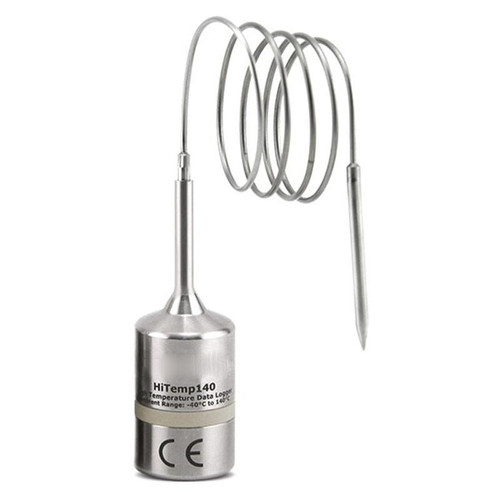

HiTemp 140 Temperature Data Logger with 2in Probe

The HiTemp 140 is a rugged, high precision, temperature data logger for use in severe environments, e.g Autoclaves & Sterilizers, Ovens, Research Labs and Food Processing.

This stainless steel device is submersible, can withstand temperatures up to140°C (284°F) and has an accuracy of +/-0.1°C (0.18°F) over the entire operating range. The HiTemp 140 stores up to 32,700 date & time stamped readings, and has non-volatile solid state memory that will retain data even if the battery becomes discharged. Using the USB Docking Station & Software (sold separately), starting, stopping and downloading the HiTemp140 data is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations.

FEATURES:

• ±0.1°C (0.18°F) Accuracy
• Operates Up To 140°C (284°F)
• Submersible (IP68)
• Rugged Stainless Steel Housing
• User Replaceable Battery
• Rugged
• Programmable start time
• Programmable stop time
• Engraved Label
• Probe Lengths Up To 7”
• Battery Life Indicator
• NIST Traceable Certificate, not included, but available

SPECIFICATIONS:

Temperature Sensor:  100Ω Platinum RTD

Operating Environment Range (submerged): -40 to +140ºC (-40 to +284ºF), 0%RH to 100%RH

Probe Temperature Range:     -200 to +260°C (-328 to +500°F)

Temperature Resolution:        0.01ºC (0.02ºF)

Calibrated Accuracy:   ±0.1°C / ±0.18°F (20 to +140°C / 68 to +284°F)

Start Modes:   “Software programmable immediate start Delay start up to eighteen months in advance”

Stop Modes:   “Manual through software Timed (specific date and time)”

Real Time Recording:  May be used with PC to monitor and record data in real time

Password Protection:  An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.

Memory:         32,700 readings

Wrap Around: Yes

Reading Rate:  One second up to once every 24 hours

Battery Type:   3.6v high-temperature lithium battery included; user replaceable

Battery Life:     1 year typical (1 minute reading rate at 25ºC/77ºF)

Calibration:     Digital calibration through software

Calibration Date:         Automatically recorded within device

Data Format:   Date and time stamped ºC, ºF, K, ºR

Time Accuracy:           ±1 minute/month at 20ºC to 30ºC (68ºF to 86ºF) (Stand alone mode)

Computer Interface:   IFC 400 USB docking station required 125,000 baud

Dimensions (Body):    2.7” x 0.97” dia. (67mm x 25mm dia.)

Dimensions (Probe**):           2” x .188” to .125” transitional dia. 50mm x 3.8mm to 3.2mm transitional dia.

Weight:           4.2 oz (120g)

Material:         316 Stainless Steel
