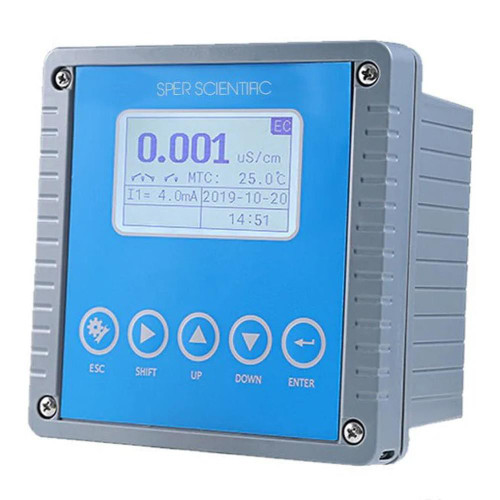

Industrial Conductivity, TDS, Salinity, Resistivity Meter

Industrial Conductivity, TDS, Salinity, and Resistivity Meter

Our Industrial Conductivity, TDS, Salinity, and Resistivity Meter is designed for precise, inline monitoring of water quality across a wide range of applications, including drinking water treatment, industrial water systems, boiler water, and more. This advanced meter ensures reliable and accurate conductivity measurements, providing critical data on the dissolved materials within water, which is essential for maintaining high water quality standards.

Why is Conductivity Measurement Important? Conductivity measurements are crucial in water treatment processes as they indicate the concentration of dissolved ions in the water. This data helps monitor and control water purity, ensuring optimal performance in systems such as boilers, cooling towers, and reverse osmosis systems. Paired with Sper Scientific conductivity controllers, this meter ensures cost-effective process control and precision in a variety of industries, including manufacturing, pharmaceuticals, food processing, and energy production.

Key Features

• Multi-functional Capability: Measures conductivity, TDS (Total Dissolved Solids), resistivity, salinity, and temperature in one device.
• Wide Measurement Range: Suitable for applications from ultra-pure deionized water to highly saturated brine solutions.
• Reliable Results: Consistent and accurate monitoring for optimal water treatment processes.
• Versatile Integration: Easily integrates into existing systems for seamless conductivity monitoring.
• Durable and Rugged Design: Built with ABS flame-retardant housing and IP65-rated protection for reliability in tough industrial environments.
• Compatible Sensors: Supports a wide range of contact conductivity sensors for different applications.

Technical Specifications

• Accuracy: ±1%, ±0.2°C
• Housing Material: ABS flame-retardant (V0)
• Power Supply: 90 – 260V AC, 50/60Hz
• Power Consumption: 4W
• Outputs: Two 4-20mA outputs for easy system integration
• Communication Interface: RS485 Modbus for remote data monitoring and control
• Relay Outputs: Two relays (5A/250V AC, 5A/30V DC) for alarms or control functions
• Temperature Compensation: PT1000 / NTC10K for temperature-adjusted accuracy
• Data Logger: Stores up to 1,000 records for analysis
• Protection Rating: IP65 for dust and water resistance
• Installation Options: Panel, wall, or pipe-mounted for flexibility
• Supported Languages: English and 简体中文

Measurement Parameters and Ranges

• Conductivity: 0.00 μS/cm to 2,000,000.00 μS/cm (0.00 μS/cm to 2,000.00 mS/cm)
• TDS: 0.00 g/L to 80.00 g/L (ppt)
• Resistivity: 0.00 MΩ to 20.00 MΩ
• Salinity: 0.00 mg/L to 130,000.00 mg/L (ppm)
• Temperature: -40.0°C to 200.0°C (with a matching electrode)

Applications

This versatile device can be used in a wide range of industries, including:

• Drinking Water Treatment: Ensures compliance with water quality standards.
• Industrial Water and Boiler Systems: Prevents scaling and corrosion by monitoring dissolved solids.
• Food and Beverage Production: Monitors water quality in production processes.
• Pharmaceuticals: Ensures ultra-pure water in drug manufacturing.
• Environmental Monitoring: Tracks water quality in natural and industrial settings.

With its advanced features, durable build, and versatility, the Industrial Conductivity, TDS, Salinity, and Resistivity Meter offers a reliable solution for monitoring water quality in any environment. Keep your operations running smoothly, efficiently, and without compromise.
