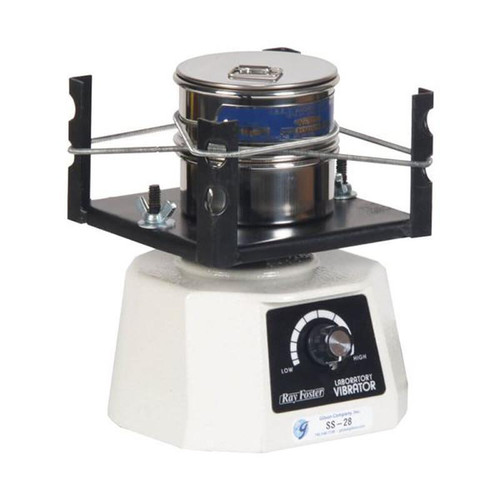

Vibra Pad, Vibratory Lab Shaker

Vibra Pad, Vibratory Lab Shaker

Vibra Pad serves a dual purpose: it agitates specific gravity specimens to remove air and acts as a light-duty shaker for 3in (76mm) diameter sieves, handling particle sizes from No.10 to No.200 (2mm to 75µm). It’s specified by the Kentucky Transportation Cabinet for fine aggregate specific gravity testing.

The platform, coated with durable plastic, measures 5.25in (133mm) square and includes wing nut fasteners and spring-loaded corner pillars to securely hold sieves, flasks, or pycnometers up to 5.25in (133mm) in diameter.

Key Features:

• Efficient agitation of specific gravity specimens for deairing
• Approved by the Kentucky Transportation Cabinet for fine aggregate testing
• Plastic-coated platform with secure wing nut fasteners and corner pillars
• Suitable for wet or dry use with 3in Nonmetallic Sieves
• Functions as a light-duty shaker for 3in (76mm) diameter sieves

Specifications:

• Sieve Frame Diameter: 3in (76mm)
• Sieve Capacity:
  • Full Height: Up to 3 sieves
  • Half Height: Up to 6 sieves
• Particle Size Range: No.10–200 (2.0mm–75µm)
• Motion/Agitation: Vibratory
• Timing Capacity: N/A
• Mounting Capability: No
• Electrical Requirements: 115V, 50/60Hz, 1.4 Amps
• Dimensions: 6 x 7 x 6.5in (152 x 178 x 165mm), WxDxH
