Gilson SG-20 Specific Gravity Bench, Complete

SKU:
V015.SG-20
Condition:
New

Price $559.98
Est Delivery in 1-2 weeks after ordering

Frequently Bought Together

Please choose Options for all selected Products

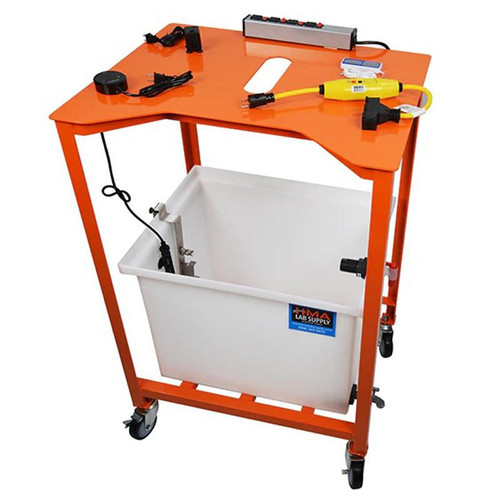

The Specific Gravity Bench is designed for weighing suspended samples in water when determining specific gravity of aggregates, hardened concrete, bituminous mixtures, refractory brick, and similar materials. Bench top is a 31x25in (787x635mm) platform with three 2in (51mm) dia. holes for suspension of samples and thermometer. Lower tank shelf has two locations to fit tanks of 18in or 24in (457 or 610mm) internal depth. Bench is sturdy, painted-steel and requires assembly. A four-outlet, 15 amp, electrical strip (UL Listed, CSA Certified) is attached for single-switch on/off of 115V/60Hz accessories.

Overall height is 46in (1,168mm).

Order heavy-duty polyethylene water tanks separately. Maximum operating temperature is 140°F (60°C).

Meets Test Methods:
AASHTO T166
AASHTO T209
AASHTO T275
AASHTO T85
ASTM C 127
ASTM C 20
ASTM C 642
ASTM C 830
ASTM D 1188
ASTM D 2041
ASTM D 2726
